> L-系列：干式真空泵

  Dimension

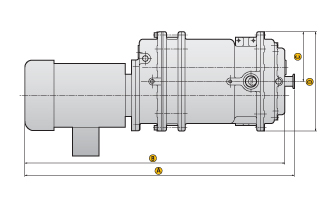

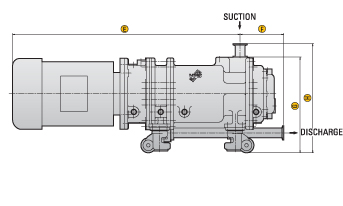

  L-Series : Dimension   L-Series : Dimension


型号 A B C D E F G H I 备注


 VPS-L400   850   802   176   352   675   175   375   415


 VPS-L600   863   815   176   352   688   175   375   415


 VPS-L800   930   883   196   392   755   175   395   435


 VPS-L1000   950   900   196   392   775   175   395   435
